description

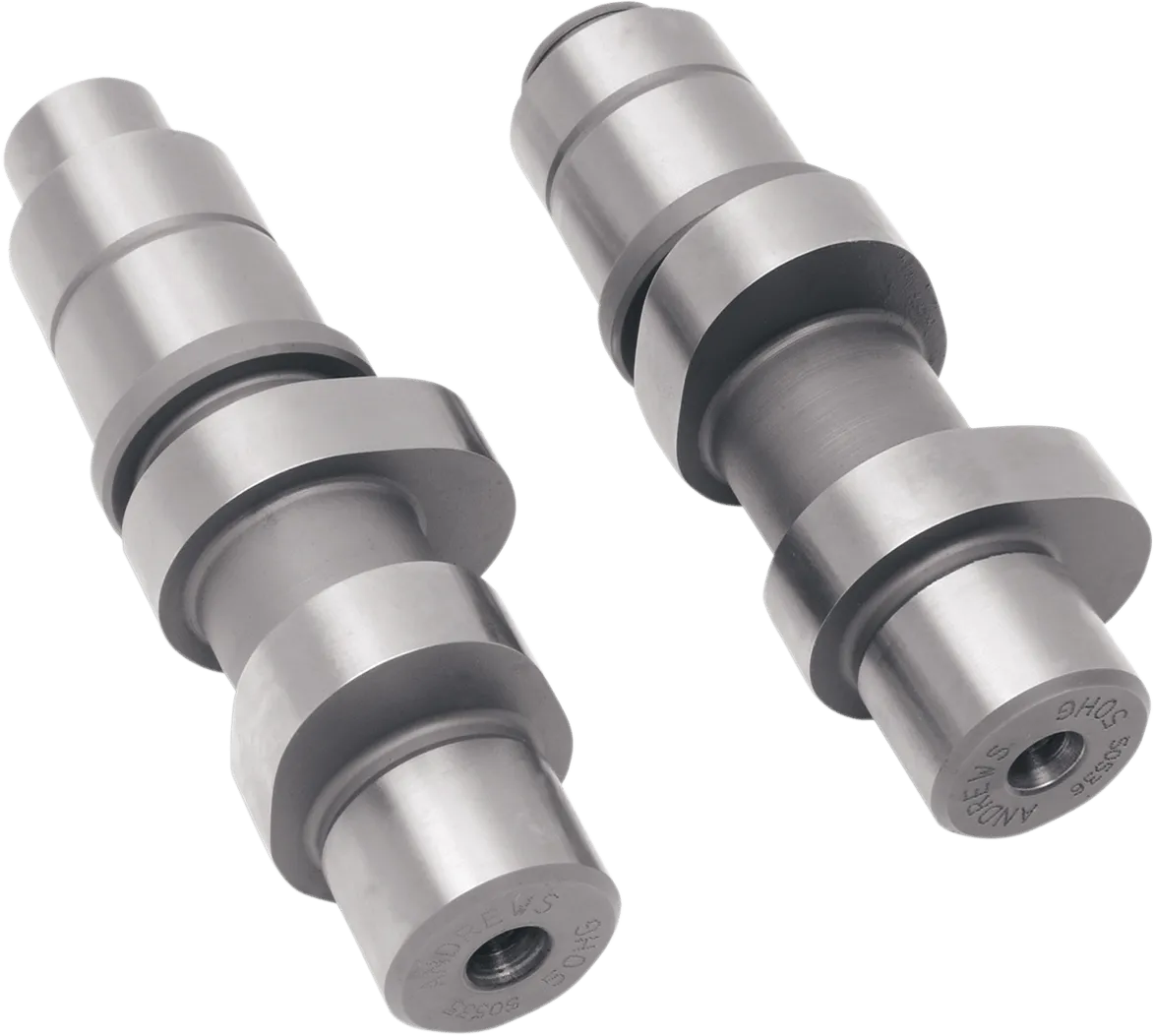

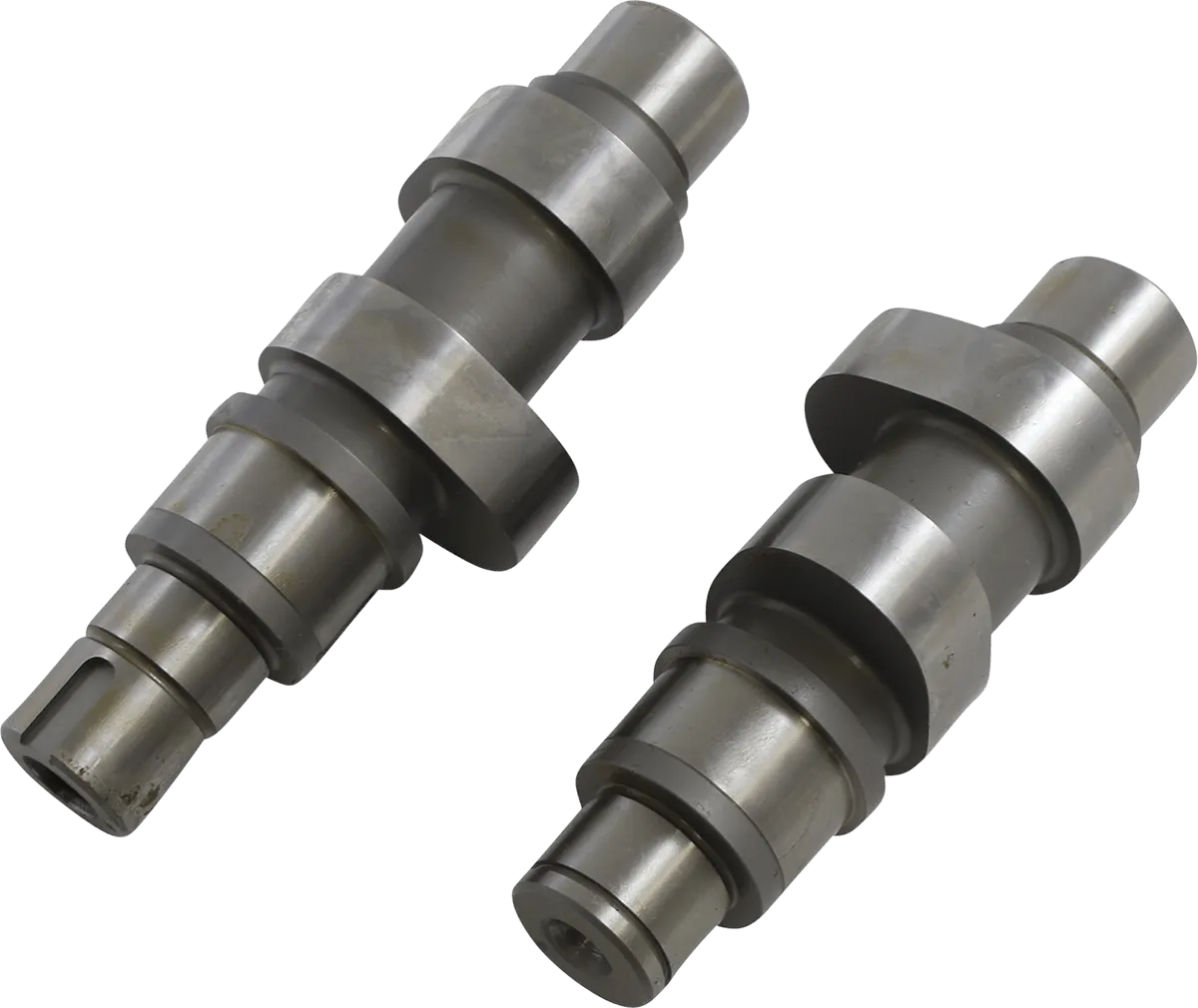

Gear drive uses less engine power to operate and improves valve timing accuracy over stock chain drive camshafts. Dynamometer comparisons show gains of 4 horsepower over chain drive camshafts. Sold as cams only, inner and outer gear kit and installation kit must be purchased separately. Great cam for 95in. motors. Max torque and HP at mid and upper RPm. Similar grind to TW55. Requires spring spacing. Intake Opening (degrees): 22. Intake Closing (degrees): 46. Exhaust Opening (degrees): 52. Exhaust Closing (degrees): 20. Intake Duration (degrees): 248. Exhaust Duration (degrees): 252. Intake Lift (in): .550. Exhaust Lift (in): .550. NOTE: Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance. NOTE: Sold as cams only, inner and outer gear kit and installation kit must be purchased separately Gear drive uses less engine power to operate and improves valve timing accuracy over stock chain drive camshafts. Dynamometer comparisons show gains of 4 horsepower over chain drive camshafts. Sold as cams only, inner and outer gear kit and installation kit must be purchased separately. Great cam for 95in. motors. Max torque and HP at mid and upper RPm. Similar grind to TW55. Requires spring spacing. Intake Opening (degrees): 22. Intake Closing (degrees): 46. Exhaust Opening (degrees): 52. Exhaust Closing (degrees): 20. Intake Duration (degrees): 248. Exhaust Duration (degrees): 252. Intake Lift (in): .550. Exhaust Lift (in): .550. NOTE: Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance. NOTE: Sold as cams only, inner and outer gear kit and installation kit must be purchased separately Intake Opening (degrees): 22. Intake Closing (degrees): 46. Exhaust Opening (degrees): 52. Exhaust Closing (degrees): 20. Intake Duration (degrees): 248. Exhaust Duration (degrees): 252. Intake Lift (in): .550. Exhaust Lift (in): .550.
fitment
Harley Davidson:- FLHR Road King 1999-2006
- FLHRCI Road King Classic 1999-2006
- FLHRI Road King 2000-2006
- FLHRS Road King Custom 2004-2006
- FLHRSI Road King Custom 2004-2006
- FLHT Electra Glide Standard 1999-2006
- FLHTC Electra Glide Classic 1999-2005
- FLHTCI Electra Glide Classic 1999-2006
- FLHTCUI Electra Glide Ultra Classic 1999-2006
- FLHTI Electra Glide Standard 2003-2006
- FLHX Street Glide 2006
- FLHXI Street Glide 2006
- FLST Heritage Softail 2006
- FLSTC Heritage Softail Classic 2000-2006
- FLSTCI Heritage Softail Classic 2001-2006
- FLSTF Fat Boy 2000-2006
- FLSTFI Fat Boy 2001-2006
- FLSTI Heritage Softail 2006
- FLSTN Softail Deluxe 2005-2006
- FLSTNI Softail Deluxe 2005-2006
- FLSTS Heritage Springer 2000-2003
- FLSTSC Softail Springer Classic 2005-2006
- FLSTSCI Softail Springer Classic 2005-2006
- FLSTSI Heritage Springer 2001-2003
- FLTR Road Glide 1999-2002
- FLTRI Road Glide 1999-2006
- FXD Dyna Super Glide 1999-2005
- FXDC Super Glide Custom 2005
- FXDCI Super Glide Custom 2005
- FXDI Dyna Super Glide 2004-2005
- FXDL Dyna Low Rider 1999-2005
- FXDLI Dyna Low Rider 2004-2005
- FXDS-Conv Dyna Convertible 1999-2000
- FXDWG Dyna Wide Glide 1999-2005
- FXDWGI Dyna Wide Glide 2004-2005
- FXDX Dyna Super Glide Sport 1999-2005
- FXDXI Dyna Super Glide Sport 2004-2005
- FXDXT Dyna Super Glide T-Sport 2001-2003
- FXST Softail Standard 2000-2006
- FXSTB Night Train 2000-2006
- FXSTBI Night Train 2001-2006
- FXSTD Softail Deuce 2000-2006
- FXSTDI Softail Deuce 2001-2006
- FXSTI Softail Standard 2001-2006
- FXSTS Springer Softail 2000-2006
- FXSTSI Springer Softail 2001-2006
