description

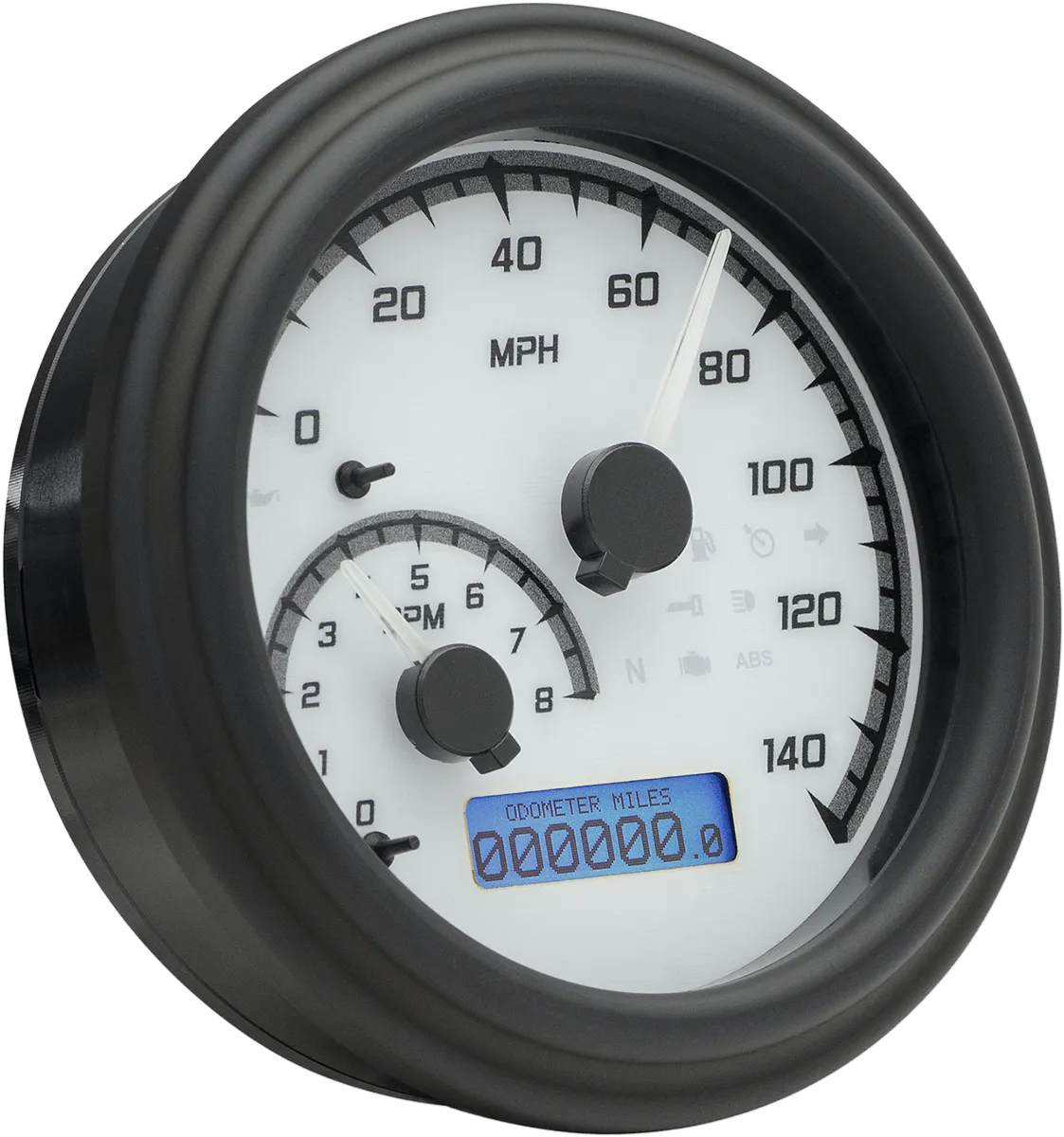

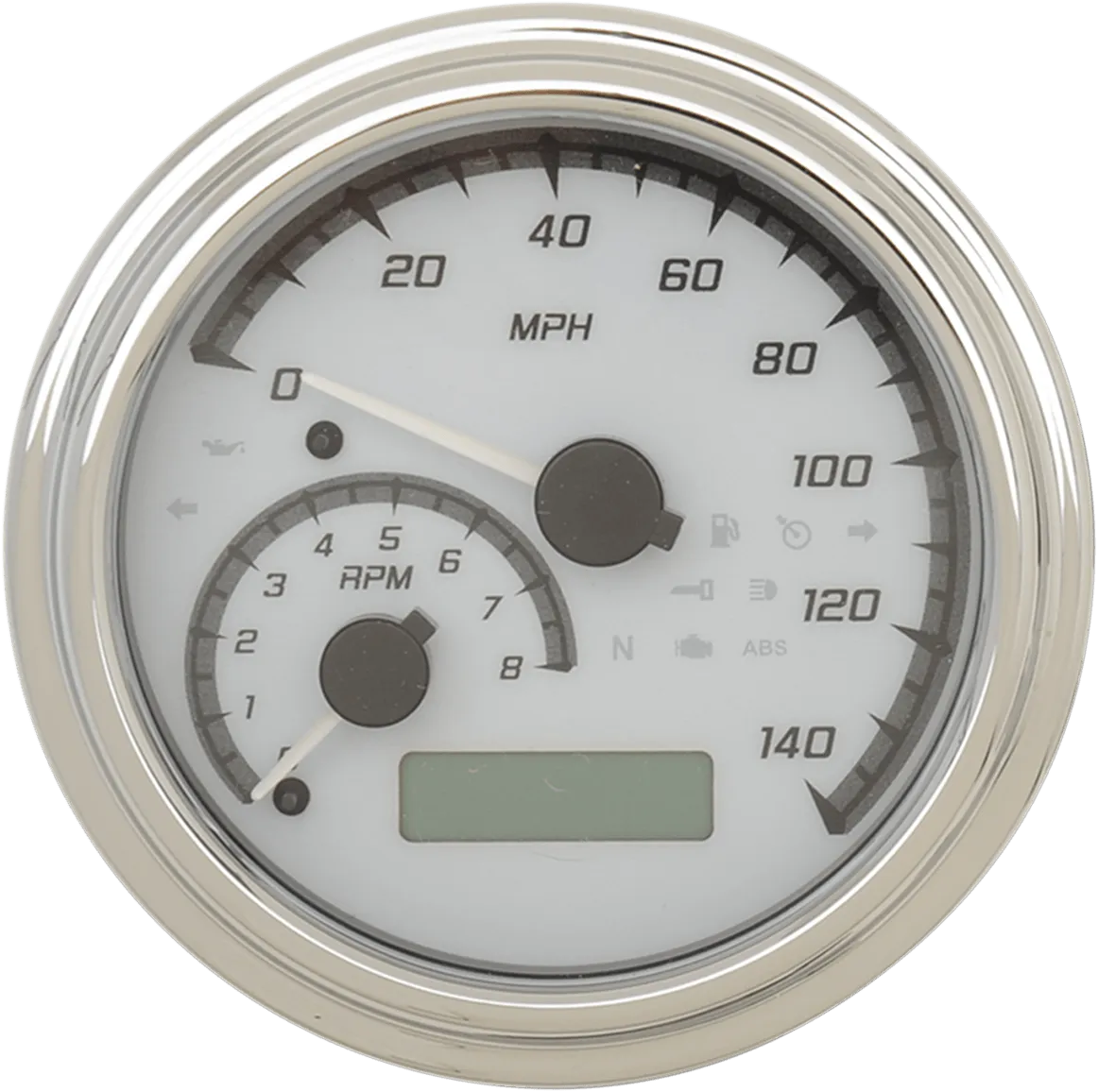

Has 140 mph speedometer, tachometer, odometer, dual resettable trip meters, and full indicator light complement (turn signal, high beam, neutral, low oil pressure) in one stylish gauge. Seven user-selectable colors for pointer, backlight and LCD message center (red, green, blue, teal, magenta, amber or white). Tachometer has adjustable shift point and can display in digital numeric readout. Resettable miles to service with a warning (user settable countdown) and hour meter. Clock function (12-hour format). Voltage readout with low-voltage alert. Cylinder head temperature sensor (if bike is equipped with factory sender unit). Oil pressure warning light. Seven-speed gear position indicator, compatible with 3- to 7-speed transmissions. Security system indicator. Automatic turn signal cancelling compatible. Wait to start/ check engine light function. Can perform performance calculations such as 0-60 time, top speed and peak rpm recall, 1/4 mile time and speed. Wiring installation is cut/ splice; not a direct plug-in gauge.

fitment

• FLD Switchback 2012-2016 (With tank mounted speedo)
• FLHR Road King 2014-2016 (With tank mounted speedo)
• FLHR Road King 2017-2020
• FLHRXS Road King Special 2017-2020
• FLS Softail Slim 2012-2016 (With tank mounted speedo)
• FLSTC Heritage Softail Classic 2011-2016 (With tank mounted speedo)
• FLSTC Heritage Softail Classic 2017
• FLSTF Fat Boy 2011-2016 (With tank mounted speedo)
• FLSTF Fat Boy 2017
• FLSTFB Fat Boy Lo 2011-2016 (With tank mounted speedo)
• FLSTN Softail Deluxe 2011-2014 (With tank mounted speedo)
• FLSTN Softail Deluxe 2015-2017
• FLSTSB Cross Bones 2011 (With tank mounted speedo)
• FXDB Street Bob 2012-2016 (With tank mounted speedo)
• FXDB Street Bob 2017
• FXDC Super Glide Custom 2012-2014 (With tank mounted speedo)
• FXDF Fat Bob 2012-2016 (With tank mounted speedo)
• FXDF Fat Bob 2017
• FXDL Low Rider 2014-2016 (With tank mounted speedo)
• FXDL Low Rider 2017
• FXDWG Dyna Wide Glide 2012-2016 (With tank mounted speedo)
• FXDWG Dyna Wide Glide 2017
