description

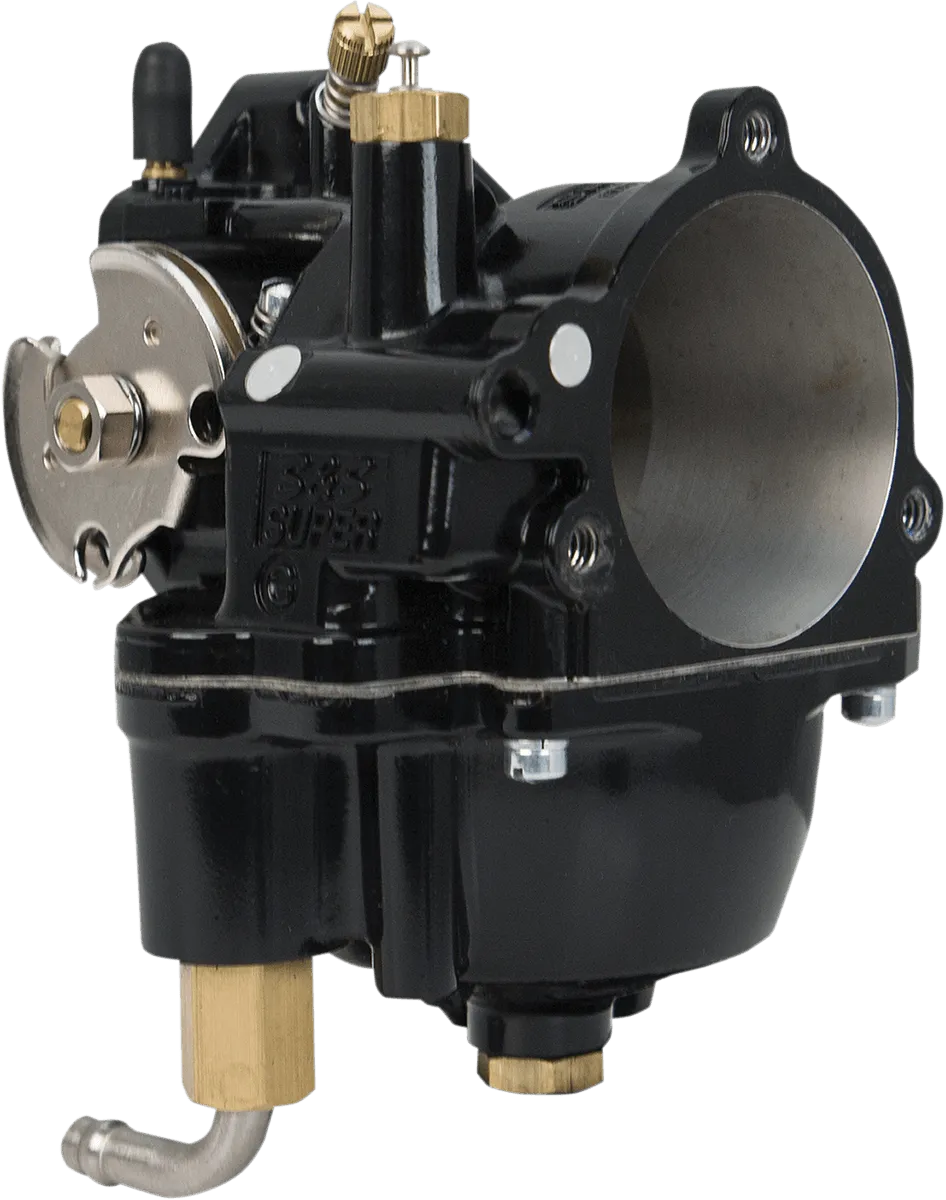

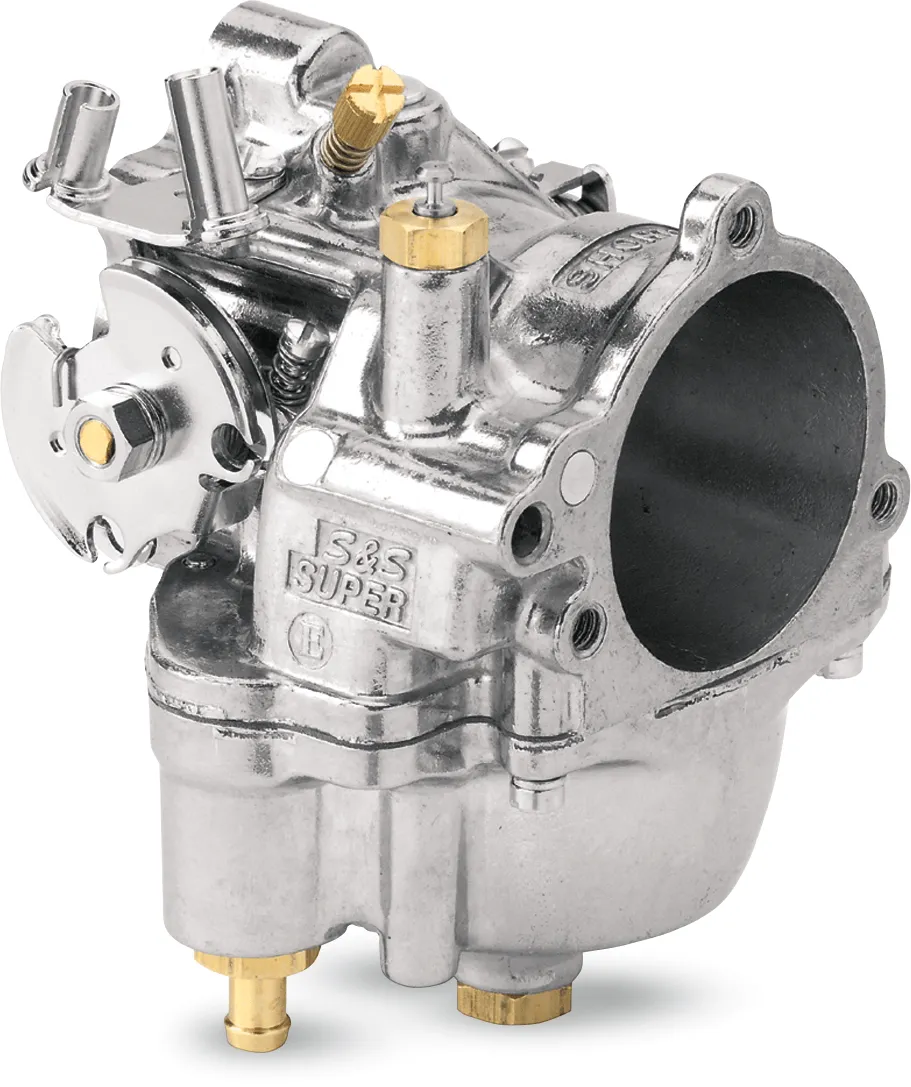

The Super E and G are butterfly type carbs with fully adjustable idle mixture screws and changeable intermediate and main jets. The idle mixture screw is positioned and angled for easy accessibility. Even with five gallon gas tanks, adjustments are not a problem. All Super series carburetors use a special enrichment device instead of a choke for starting. This leaves the bore of the carburetor unobstructed for greater air flow. The enrichment device on the Super E & G carbs is activated by a variable position lever attached to the air cleaner backplate. By simply adjusting the lever, starting and warm-ups are made easy and foolproof. The Super E has a 1-7/8 throat at the butterfly and is identified by an E cast into the throttle linkage side of the carb body below the cast in wording S&S SUPEr. The Super G has a 2-1/16 throat at the butterfly and is identified by an G cast into the throttle linkage side of the carb body below the cast in wording S&S SUPEr. Throttle spool assembly is designed to accept stock 1981 and later style two-cable pull open-pull closed throttle assemblies so stock throttle cables can be used. Made in USA The Super E and G are butterfly type carbs with fully adjustable idle mixture screws and changeable intermediate and main jets. The idle mixture screw is positioned and angled for easy accessibility. Even with five gallon gas tanks, adjustments are not a problem. All Super series carburetors use a special enrichment device instead of a choke for starting. This leaves the bore of the carburetor unobstructed for greater air flow. The enrichment device on the Super E & G carbs is activated by a variable position lever attached to the air cleaner backplate. By simply adjusting the lever, starting and warm-ups are made easy and foolproof. The Super E has a 1-7/8 throat at the butterfly and is identified by an E cast into the throttle linkage side of the carb body below the cast in wording S&S SUPEr. The Super G has a 2-1/16 throat at the butterfly and is identified by an G cast into the throttle linkage side of the carb body below the cast in wording S&S SUPEr. Throttle spool assembly is designed to accept stock 1981 and later style two-cable pull open-pull closed throttle assemblies so stock throttle cables can be used. Made in USA S&S Super E & G carburetors require the use of a two-cable, pull open/pull close throttle assembly.
fitment
Harley Davidson:- FLFB Electra Glide 1966-1969
- FLH Electra Glide 1970-1978
- FLH Electra Glide 1979-1980 (1979-80 engines may be equipped with either o-ring or band style heads. Check before ordering.)
- FLH Electra Glide 1981-1985
- FLHB Electra Glide 1966-1969
- FLHC Electra Glide Classic 1979-1980 (1979-80 engines may be equipped with either o-ring or band style heads. Check before ordering.)
- FLHC Electra Glide Classic 1981
- FLHF 1970-1972
- FLHFB Electra Glide 1966-1969
- FLHR Road King 1994-2005
- FLHRCI Road King Classic 1998-2005
- FLHRI Road King 1996-1997
- FLHRI Road King 2000-2005
- FLHRS Road King Custom 2004-2005
- FLHRSI Road King Custom 2004-2005
- FLHS Electra Glide Sport 1980 (1979-80 engines may be equipped with either o-ring or band style heads. Check before ordering.)
- FLHS Electra Glide Sport 1981
- FLHS Electra Glide Sport 1984
- FLHS Electra Glide Sport 1987-1993
- FLHT Electra Glide Standard 1986-1987
- FLHT Electra Glide Standard 1995-2005
- FLHTC Electra Glide Classic 1983-2005
- FLHTCI Electra Glide Classic 1996-2005
- FLHTCU Electra Glide Ultra Classic 1989-1997
- FLHTCUI Electra Glide Ultra Classic 1995-2005
- FLHTI Electra Glide Standard 2003-2005
- FLHX Electra Glide Special 1984-1985
- FLST Heritage Softail 1986-1990
- FLSTC Heritage Softail Classic 1988-2005
- FLSTCI Heritage Softail Classic 2001-2005
- FLSTF Fat Boy 1990-2005
- FLSTFI Fat Boy 2001-2005
- FLSTN Heritage Softail Nostalgia 1993
- FLSTN Heritage Softail Special 1994-1996
- FLSTN Softail Deluxe 2005
- FLSTNI Softail Deluxe 2005
- FLSTS Heritage Springer 1997-2003
- FLSTSC Softail Springer Classic 2005
- FLSTSCI Softail Springer Classic 2005
- FLSTSI Heritage Springer 2001-2003
- FLT Tour Glide 1980 (1979-80 engines may be equipped with either o-ring or band style heads. Check before ordering.)
- FLT Tour Glide 1981-1983
- FLTC Tour Glide Classic 1981-1991
- FLTCU Tour Glide Ultra Classic 1989-1995
- FLTCUI Tour Glide Ultra Classic 1996
- FLTR Road Glide 1998-2002
- FLTRI Road Glide 1998-2005
- FX Super Glide 1971-1978
- FXB Sturgis 1980 (1979-80 engines may be equipped with either o-ring or band style heads. Check before ordering.)
- FXB Sturgis 1981-1982
- FXD Dyna Super Glide 1995-2005
- FXDB-D Dyna Glide Daytona 1992
- FXDB-S Dyna Glide Sturgis 1991
- FXDC Super Glide Custom 1992
- FXDC Super Glide Custom 2005
- FXDCI Super Glide Custom 2005
- FXDG Disc Glide 1983
- FXDI Dyna Super Glide 2004-2005
- FXDL Dyna Low Rider 1993-2005
- FXDLI Dyna Low Rider 2004-2005
- FXDS-Conv Dyna Convertible 1994-2000
- FXDWG Dyna Wide Glide 1993-2005
- FXDWGI Dyna Wide Glide 2004-2005
- FXDX Dyna Super Glide Sport 1999-2005
- FXDXI Dyna Super Glide Sport 2004-2005
- FXDXT Dyna Super Glide T-Sport 2001-2003
- FXE Super Glide 1974-1978
- FXE Super Glide 1979-1980 (1979-80 engines may be equipped with either o-ring or band style heads. Check before ordering.)
- FXE Super Glide 1981-1984
- FXEF Fat Bob 1979-1980 (1979-80 engines may be equipped with either o-ring or band style heads. Check before ordering.)
- FXEF Fat Bob 1981
- FXEF Fat Bob 1985
- FXLR Low Rider Custom 1987-1994
- FXR Super Glide II 1986-1994
- FXRC Low Rider Chrome 1985
- FXRC Low Rider Chrome 1987
- FXRD Sport Glide Grand Touring 1986
- FXRDG Disc Glide 1984
- FXRS Low Glide 1985-1992
- FXRS-Conv Low Rider Sport Convertible 1990-1993
- FXRS-SP Low Rider Sport 1986-1993
- FXRT Sport Glide 1984-1992
- FXS Low Rider 1977-1978
- FXSB Low Rider - Belt 1984-1985
- FXST Softail Standard 1984-1990
- FXST Softail Standard 1999-2005
- FXSTB Night Train 1999-2005
- FXSTBI Night Train 2001-2005
- FXSTC Softail Custom 1986-1999
- FXSTD Softail Deuce 2000-2005
- FXSTDI Softail Deuce 2001-2005
- FXSTI Softail Standard 2001-2005
- FXSTS Springer Softail 1988-2005
- FXSTSB Bad Boy 1995-1997
- FXSTSI Springer Softail 2001-2005
- FXWG Wide Glide 1984-1986
