description

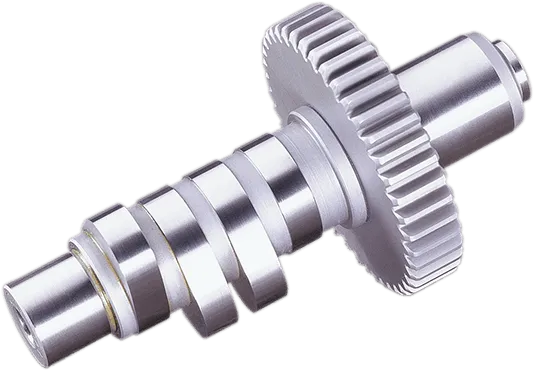

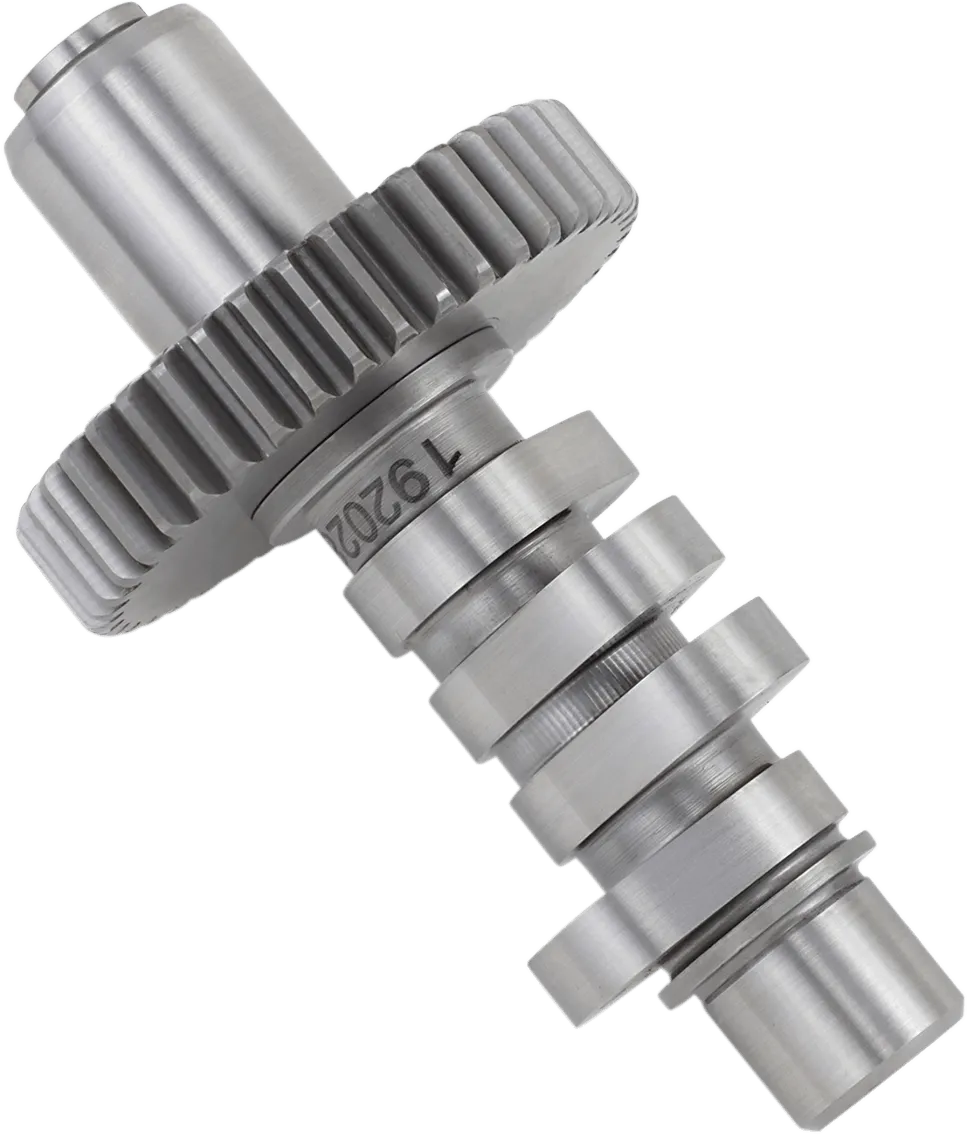

New cam lobe designs allow maximum performance for Evolution engines. Give great throttle response and mid-range with excellent high-rpm power. Fast opening and closing gives better airflow with the lift and duration used. Xtreme Energy cams require valve springs designed for high-lift cams. All cams made from SAE 6150 bearing-quality steel for durability and include the cam gear. Made in the USA. Intake Opening (degrees): 26. Intake Closing (degrees): 46. Exhaust Opening (degrees): 52. Exhaust Closing (degrees): 20. Intake Duration (degrees): 252. Exhaust Duration (degrees): 252. Valve Lift (in): .585. Intake Centerline (degrees): 100. Exhaust Centerline (degrees): 106. Intake Lift at TDC (in): .228. Exhaust Lift at TDC (in): .182 Mid-range to top-end for modified 80- to 88-cu. -in. engines, 9.5:1 compression and low-restriction pipes and intake. Always check valve spring coil bind, valve guide-to-collar, valve-to-valve and valve-to-piston clearance when installing a new cam.
fitment
Harley Davidson:- FLH Electra Glide 1985
- FLHR Road King 1994-1998
- FLHRCI Road King Classic 1998
- FLHRI Road King 1996-1997
- FLHS Electra Glide Sport 1987-1993
- FLHT Electra Glide Standard 1986-1987
- FLHT Electra Glide Standard 1995-1998
- FLHTC Electra Glide Classic 1984-1998
- FLHTCI Electra Glide Classic 1996-1998
- FLHTCU Electra Glide Ultra Classic 1989-1997
- FLHTCUI Electra Glide Ultra Classic 1995-1998
- FLHX Electra Glide Special 1985
- FLST Heritage Softail 1986-1990
- FLSTC Heritage Softail Classic 1988-1999
- FLSTF Fat Boy 1990-1999
- FLSTN Heritage Softail Nostalgia 1993
- FLSTN Heritage Softail Special 1994-1996
- FLSTS Heritage Springer 1997-1999
- FLTC Tour Glide Classic 1984-1991
- FLTCU Tour Glide Ultra Classic 1989-1995
- FLTCUI Tour Glide Ultra Classic 1996
- FLTR Road Glide 1998
- FLTRI Road Glide 1998
- FXD Dyna Super Glide 1995-1998
- FXDB-D Dyna Glide Daytona 1992
- FXDB-S Dyna Glide Sturgis 1991
- FXDC Super Glide Custom 1992
- FXDL Dyna Low Rider 1993-1998
- FXDS-Conv Dyna Convertible 1994-1998
- FXDWG Dyna Wide Glide 1993-1998
- FXEF Fat Bob 1985
- FXLR Low Rider Custom 1987-1994
- FXR Super Glide II 1986-1994
- FXRC Low Rider Chrome 1985
- FXRC Low Rider Chrome 1987
- FXRD Sport Glide Grand Touring 1986
- FXRDG Disc Glide 1984
- FXRS Low Glide 1984-1992
- FXRS-Conv Low Rider Sport Convertible 1990-1993
- FXRS-SP Low Rider Sport 1986-1993
- FXRT Sport Glide 1984-1992
- FXSB Low Rider - Belt 1985
- FXST Softail Standard 1984-1990
- FXST Softail Standard 1999
- FXSTB Night Train 1999
- FXSTC Softail Custom 1986-1999
- FXSTS Springer Softail 1988-1999
- FXSTSB Bad Boy 1995-1997
- FXWG Wide Glide 1985-1986
