description

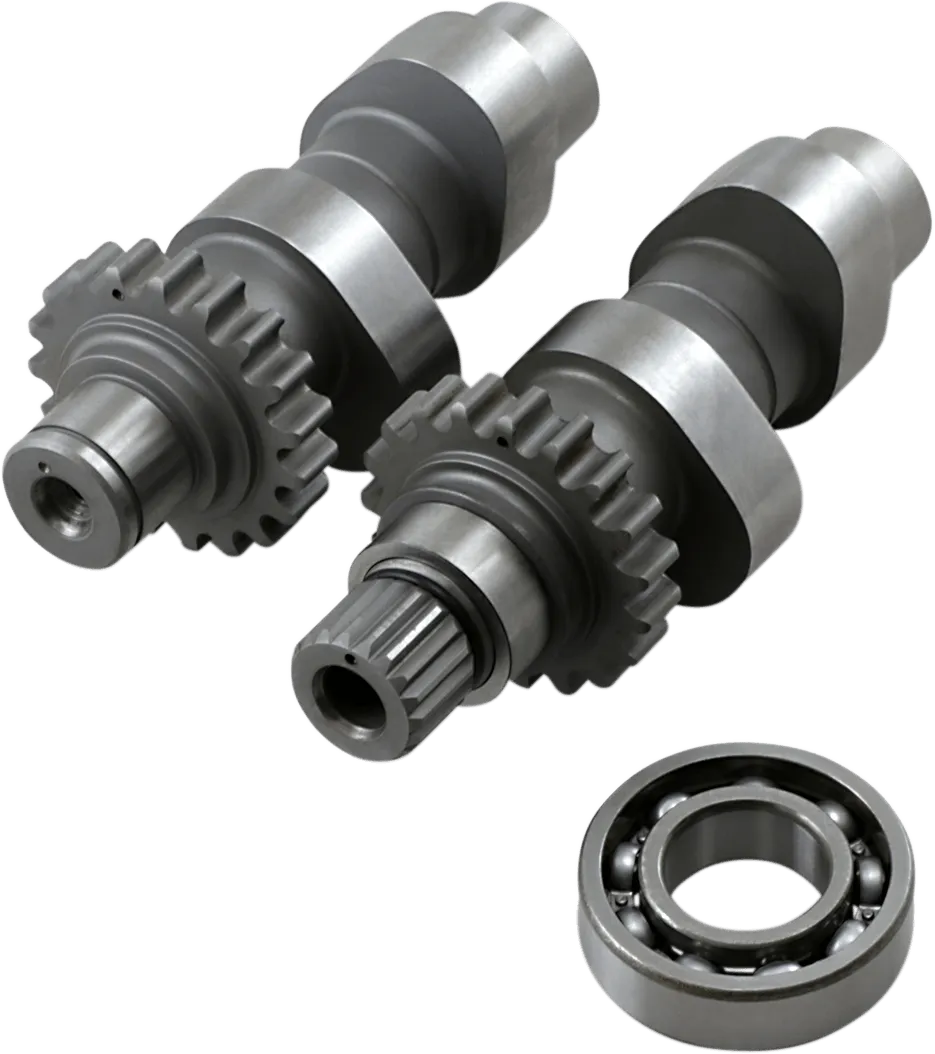

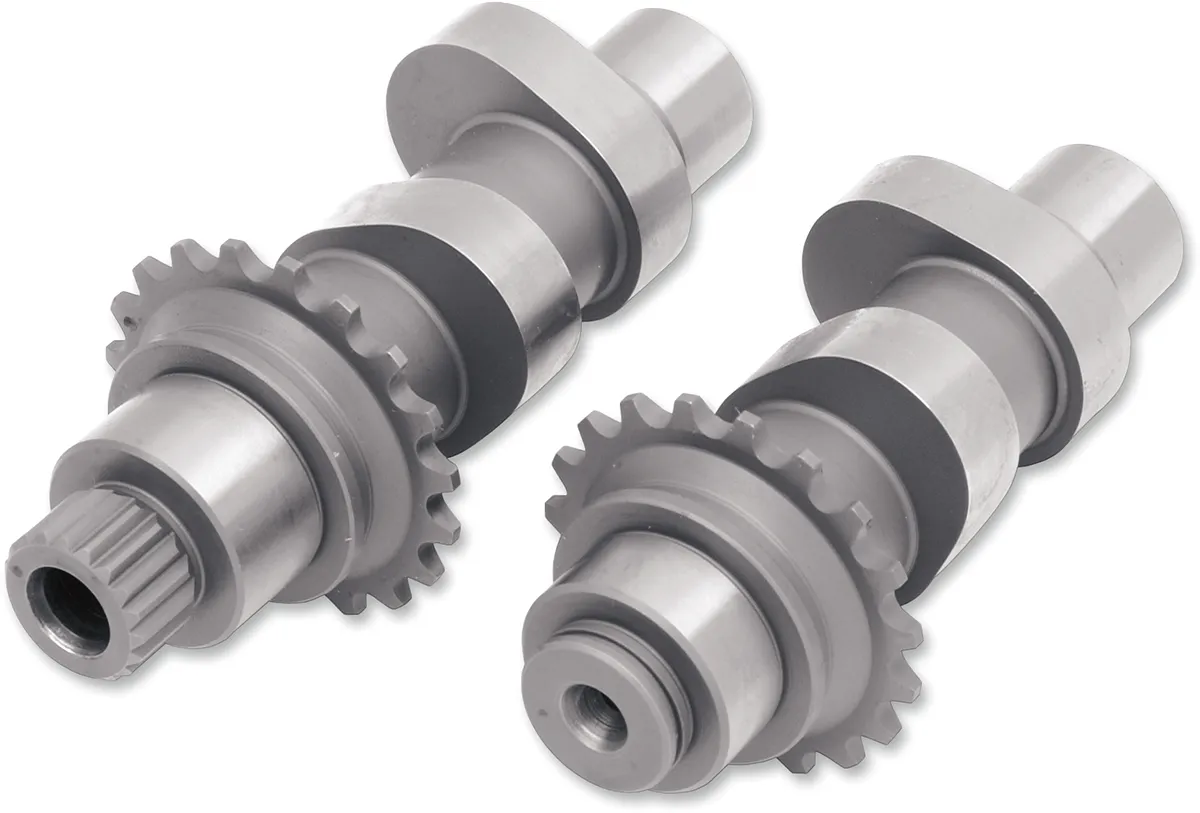

Splined chain drive camshafts. Kits include: 1 ball bearing. Roller bearing can be purchased separately. Designed for use with stock Harley-Davidson hydraulic lifters. Can be installed on both carbureted and fuel injected models. Broad tip cam for Baggers with stock motors. Max torque at low and mid RPMs. NOTE: Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance Splined chain drive camshafts. Kits include: 1 ball bearing. Roller bearing can be purchased separately. Designed for use with stock Harley-Davidson hydraulic lifters. Can be installed on both carbureted and fuel injected models. Broad tip cam for Baggers with stock motors. Max torque at low and mid RPMs. NOTE: Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance Intake Opening (degrees): 15. Intake Closing (degrees): 29. Exhaust Opening (degrees): 43. Exhaust Closing (degrees): 15. Intake Duration (degrees): 222. Exhaust Duration (degrees): 238. Intake Lift (in): .548. Exhaust Lift (in): .548.

fitment

• FLHR Road King 1999-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLHRCI Road King Classic 1999-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLHRI Road King 2000-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLHRS Road King Custom 2004-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLHRSI Road King Custom 2004-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLHT Electra Glide Standard 1999-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLHTC Electra Glide Classic 1999-2005 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLHTCI Electra Glide Classic 1999-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLHTCUI Electra Glide Ultra Classic 1999-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLHTI Electra Glide Standard 2003-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLHX Street Glide 2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLHXI Street Glide 2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLST Heritage Softail 2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLSTC Heritage Softail Classic 2000-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLSTCI Heritage Softail Classic 2001-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLSTF Fat Boy 2000-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLSTFI Fat Boy 2001-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLSTI Heritage Softail 2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLSTN Softail Deluxe 2005-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLSTNI Softail Deluxe 2005-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLSTS Heritage Springer 2000-2003 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLSTSC Softail Springer Classic 2005-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLSTSCI Softail Springer Classic 2005-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLSTSI Heritage Springer 2001-2003 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLTR Road Glide 1999-2002 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FLTRI Road Glide 1999-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXD Dyna Super Glide 1999-2005 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXDC Super Glide Custom 2005 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXDCI Super Glide Custom 2005 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXDI Dyna Super Glide 2004-2005 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXDL Dyna Low Rider 1999-2005 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXDLI Dyna Low Rider 2004-2005 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXDS-Conv Dyna Convertible 1999-2000 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXDWG Dyna Wide Glide 1999-2005 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXDWGI Dyna Wide Glide 2004-2005 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXDX Dyna Super Glide Sport 1999-2005 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXDXI Dyna Super Glide Sport 2004-2005 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXDXT Dyna Super Glide T-Sport 2001-2003 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXST Softail Standard 2000-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXSTB Night Train 2000-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXSTBI Night Train 2001-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXSTD Softail Deuce 2000-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXSTDI Softail Deuce 2001-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXSTI Softail Standard 2001-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXSTS Springer Softail 2000-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
• FXSTSI Springer Softail 2001-2006 ( but the splined cam drive sprocket OEM #25716-99 must be used.,:Will fit in the 1999 Twin Cam motor)
